ARCHITECTURAL FILMS
Product Code

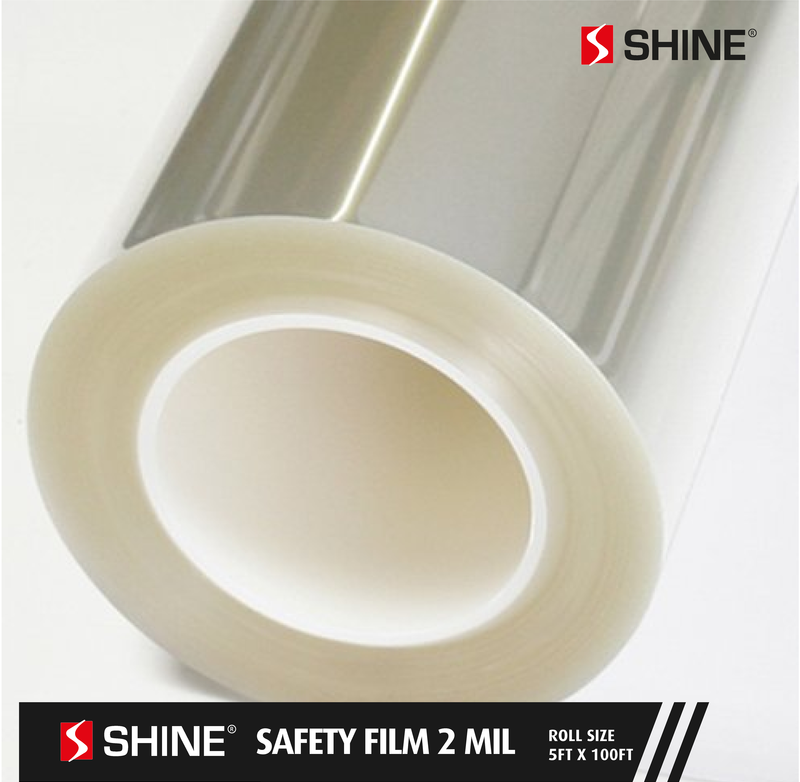

SAFETY FILM 2MIL
Product Specifications:
Category
Architectural / Automobile
Series
Safety Film
Construction:
Thickness
2 Mil
Technology
Safety
Color
Clear Safety Film
Adhesive
Pressure Sensitive Adhensive
Warranty
7 Years
Solar Performance:
Visible Light Transmittance 90%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 08%
Infrared Rejection (940nm) 08%
Full Infrared Rejection 08%
Solar Heat Gain Coefficient 0.86
Total Solar Energy Rejected 14%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

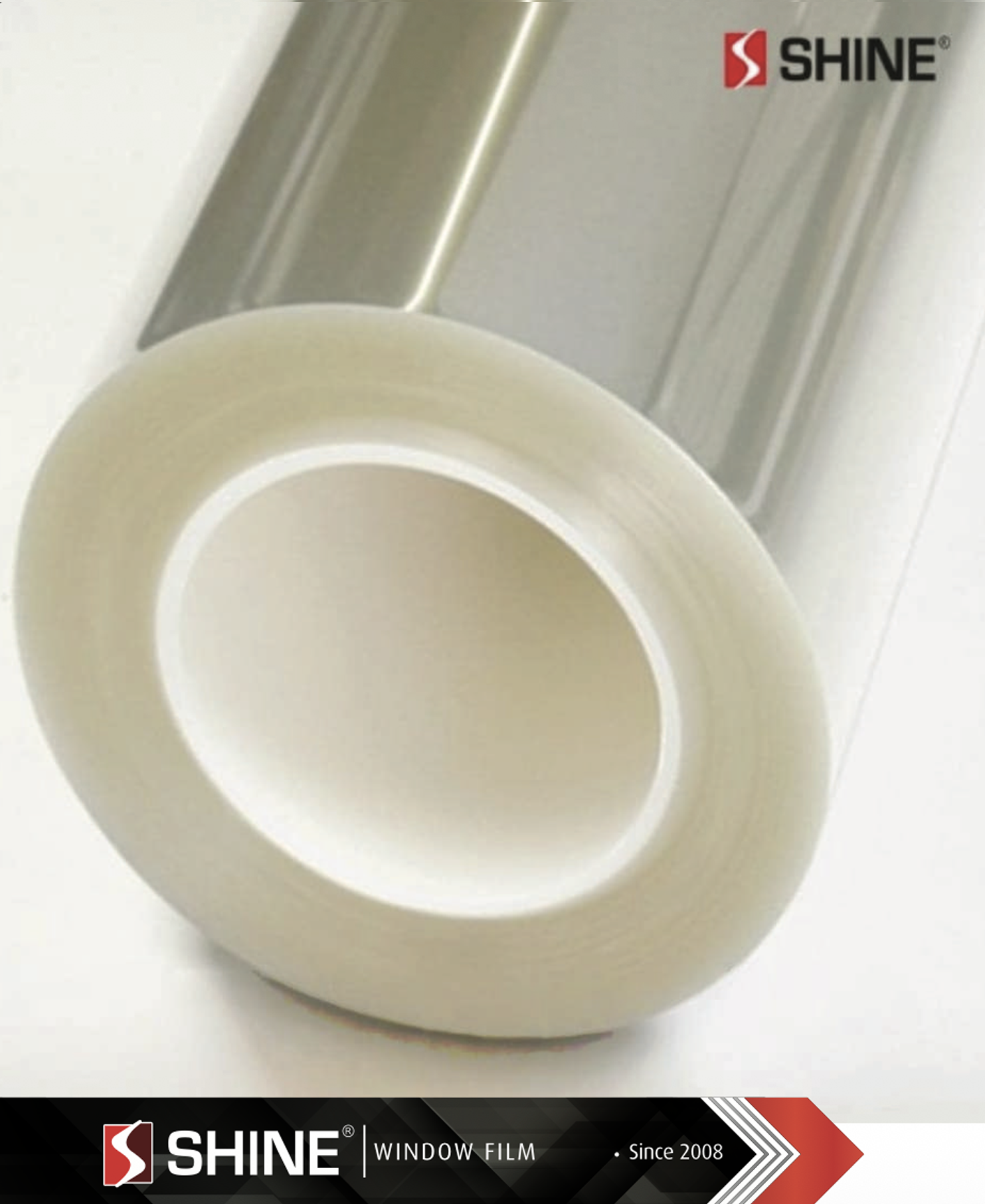

SAFETY FILM 4MIL
Product Specifications:
Category
Architectural / Automobile
Series
Safety Film
Construction:
Thickness
4 Mil
Technology
Safety
Color
Clear Safety Film
Adhesive
Pressure Senstive Adhensive
Warranty
10 Years
Solar Performance:
Visible Light Transmittance 90%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 07%
Infrared Rejection (940nm) 08%
Full Infrared Rejection 08%
Solar Heat Gain Coefficient 0.87
Total Solar Energy Rejected 13%
Tensile Strength At Break >1900kg/cm2
Elongation At Break MD >130%
Peel Strength >2500kg/Inch
Impact Test BS6206 For Class B Passes
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
