OUR PRODUCTS

ARCHITECTURAL FILMS
Product Code
NF CERAMIC 40
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2ply / 2 Mil
Techhnology
Advanced Nanoceramic
Color
Light Grey
Adhesive
Pressure Adhesive
Warranty
10 Years
Solar Performance:
Visible Light Transmittance 40%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 34%
Infrared Rejection (940nm) 57%
Full Infrared Rejection 56%
Solar Heat Gain Coefficient 0.39
Total Solar Energy Rejected 61%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

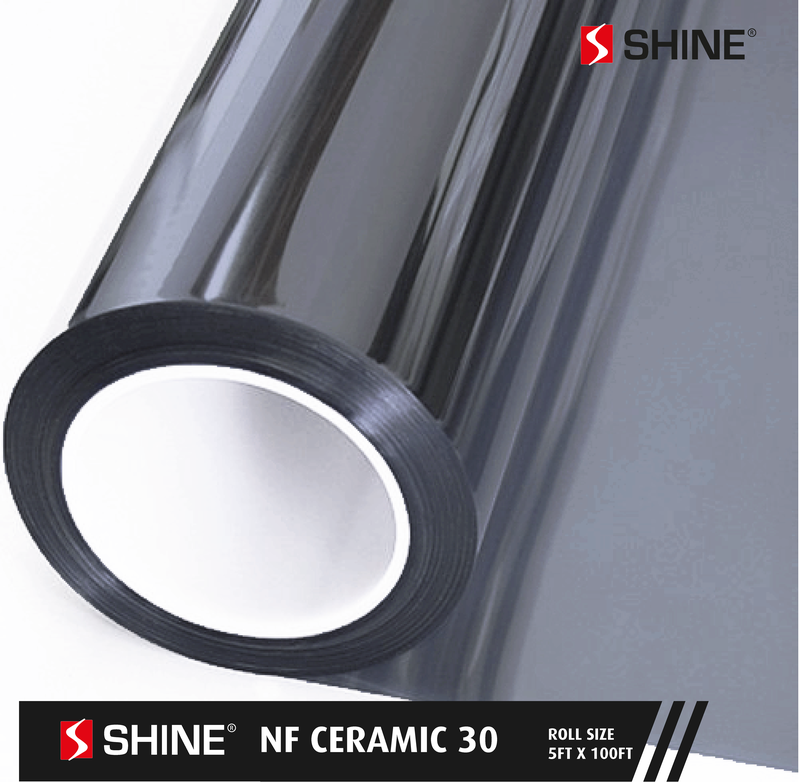

NF CERAMIC 30
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2ply / 2 Mil
Technology
Advanced Namoceramic
Color
Medium Grey
Adhesive
Pressure Adhesive
Warranty
10 years
Solar Performance:
Visible Light Transmittance 30%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 64%
Infrared Rejection (940nm) 65%
Full Infrared Rejection 65%
Solar Heat Gain Coefficient 0.30
Total Solar Energy Rejected 70%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code

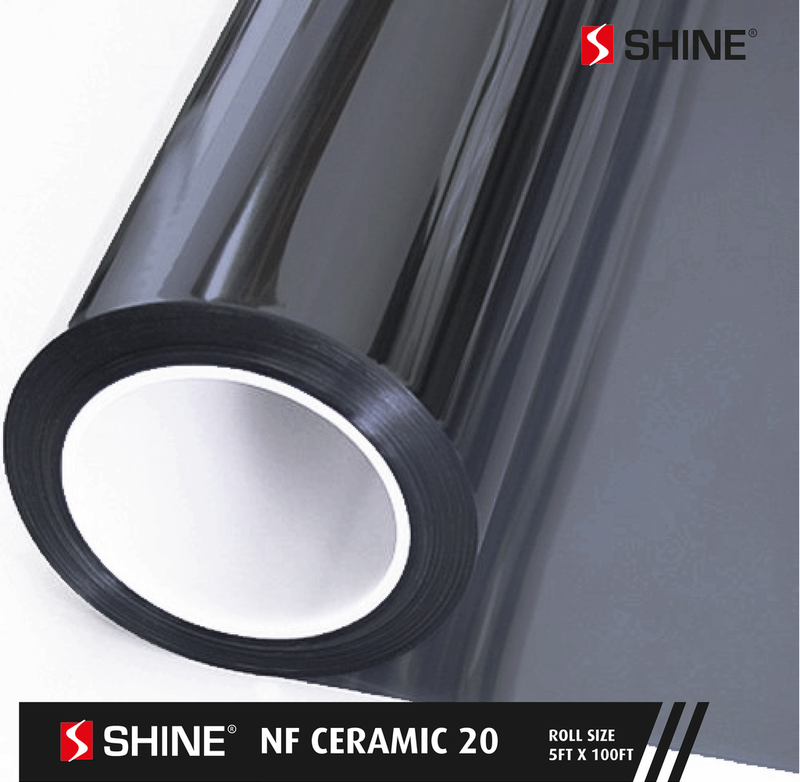

NF CERAMIC 20
Product Specifications:
Category
Architectural / Automobile
Series
Nano Ceramic
Construction:
Thickness
2ply / 2 Mil
Technology
Advanced Nanoceramic
Color
Medium Grey
Adhesive
Pressure Adhesive
Warranty
10 Years
Solar Performance:
Visible Light Transmittance 20%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 72%
Infrared Rejection (940nm) 72%
Full Infrared Rejection 72%
Solar Heat Gin Coefficient 0.25
Total Solar Energy Rejected 75%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
