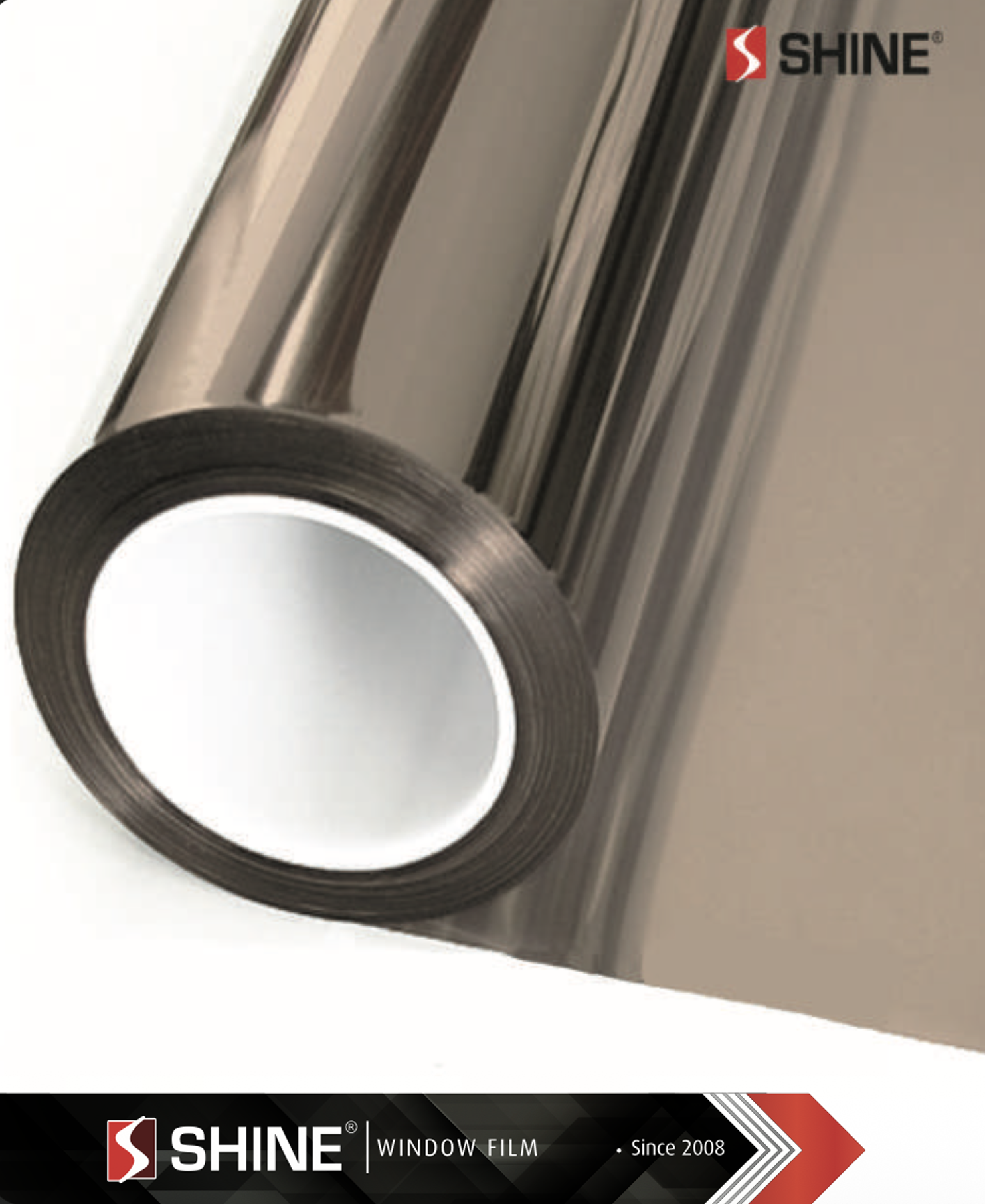

Product Code
R BROWN 30_i
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Light Brown
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 30%
Visible Light Reflectance 21%
Solar Energy Transmittance 32%
Solar Energy Reflectance 17%
Solar Energy Absorbance 51%
Shading Coefficient 0.53
Emmisivity 0.73
U Factor 1.08
Ultraviolet Light Rejected 99%
Glare Reduction 67%
Total Solar Energy Rejected 64%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

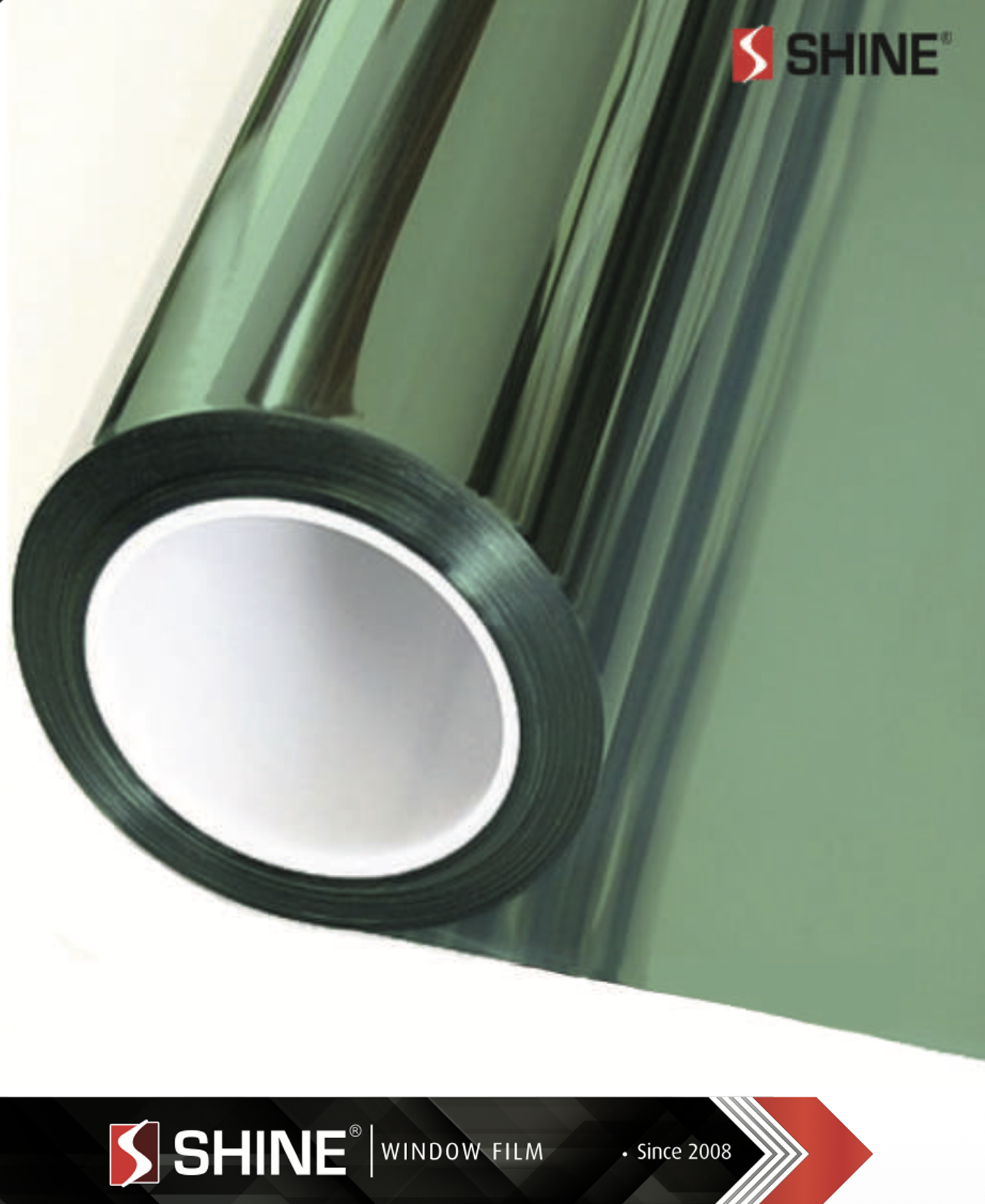

Product Code
R GREEN 30_i
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Light Green
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 30%
Visible Light Reflectance 26%
Solar Energy Transmittance 32%
Solar Energy Reflectance 17%
Solar Energy Absorbance 51%
Shading Coefficient 0.53
Emmisivity 0.73
U Factor 1.08
Ultraviolet Light Rejected 99%
Glare Reduction 67%
Total Solar Energy Rejected 64%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

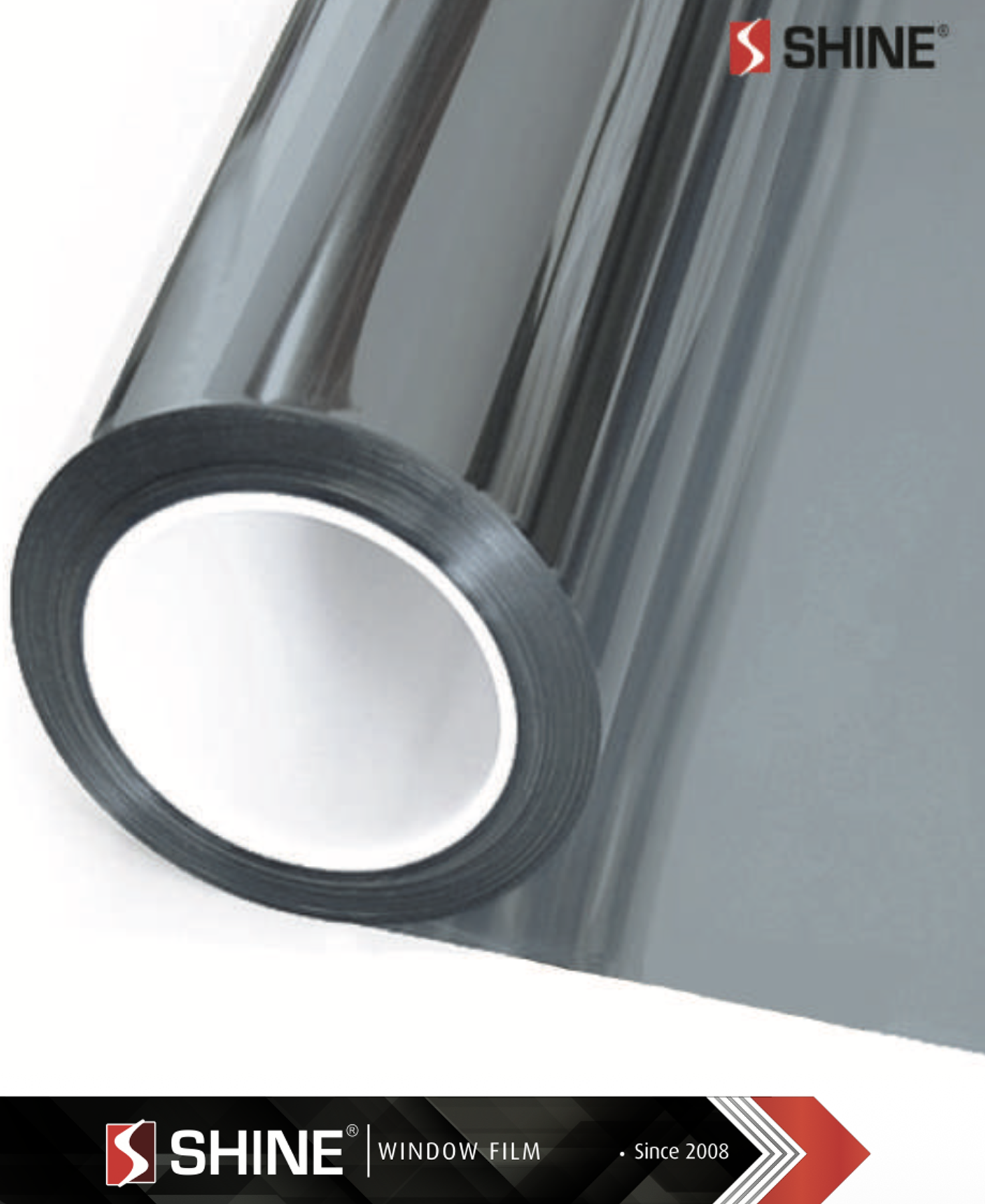

Product Code
R SILVER 50
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Natural Silver
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 50%
Visible Light Reflectance 26%
Solar Energy Transmittance 38%
Solar Energy Reflectance 26%
Solar Energy Absorbance 36%
Shading Coefficient 0.56
Emmisivity 0.78
U Factor 1.07
Ultraviolet Light Rejected 99%
Glare Reduction 46%
Total Solar Energy Rejected 60%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

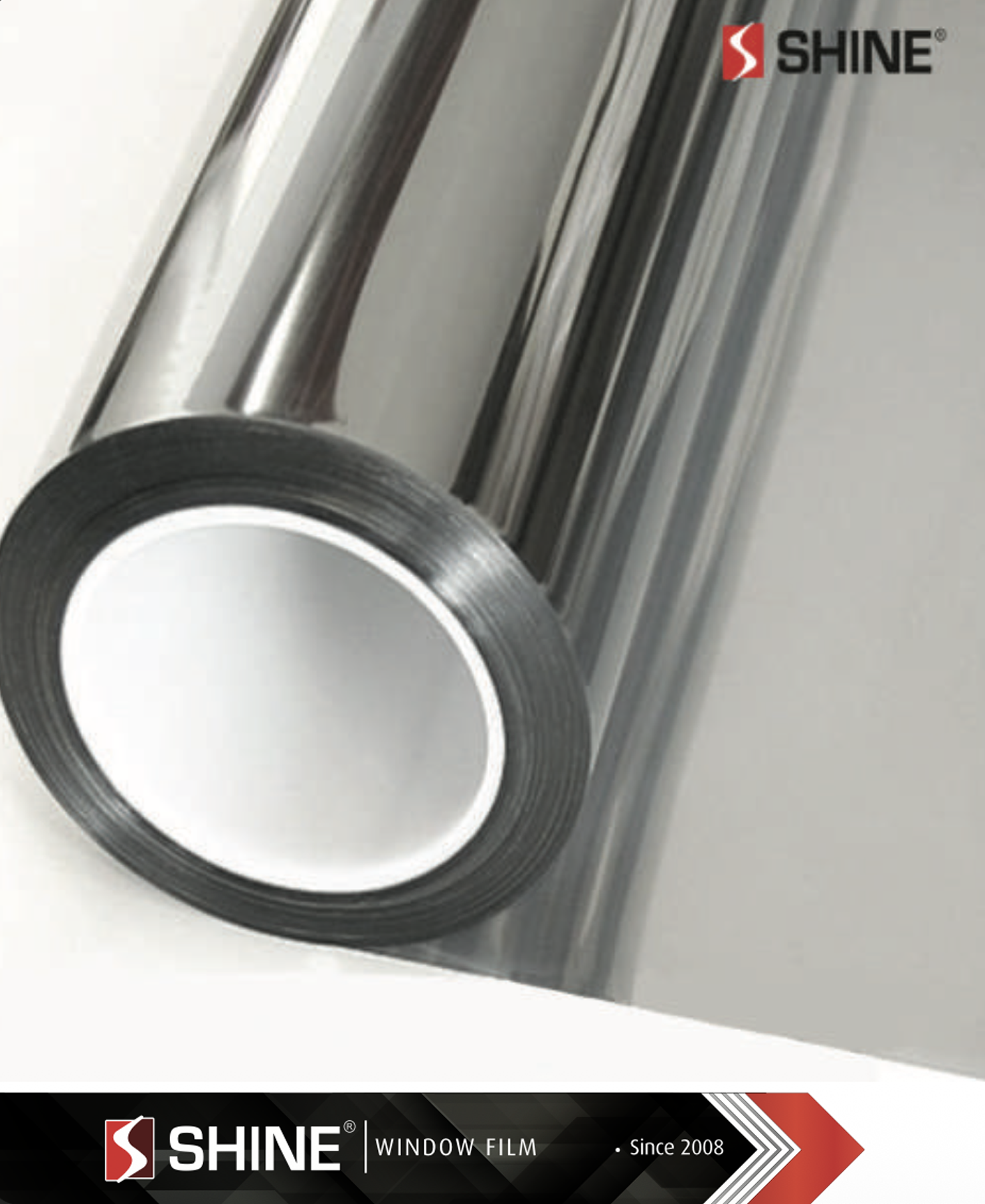

Product Code
R SILVER 20
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Silver (out) / Silver (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 15%
Visible Light Reflectance 58%
Solar Energy Transmittance 13%
Solar Energy Reflectance 53%
Solar Energy Absorbance 34%
Shading Coefficient 0.25
Emmisivity 0.64
U Factor 1.01
Ultraviolet Light Rejected 99%
Glare Reduction 80%
Total Solar Energy Rejected 86%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

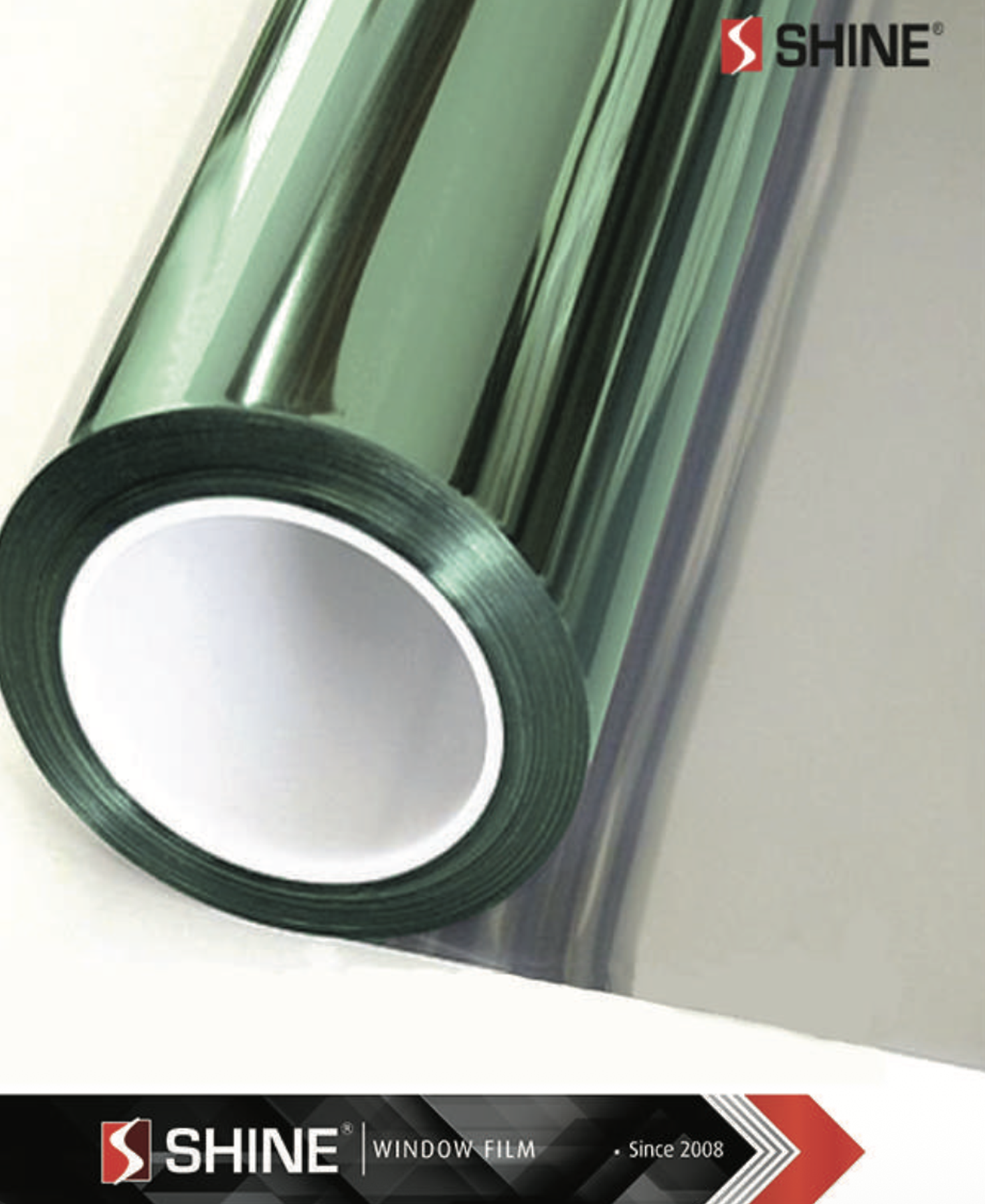

Product Code
R GREEN 10
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Green (out) / Silver (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 10%
Visible Light Reflectance 21%
Solar Energy Transmittance 10%
Solar Energy Reflectance 31%
Solar Energy Absorbance 59%
Shading Coefficient 0.31
Emmisivity 0.66
U Factor 1.01
Ultraviolet Light Rejected 99%
Glare Reduction 89%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code
R GREEN 10_i
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Silver (out) / Green (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 10%
Visible Light Reflectance 21%
Solar Energy Transmittance 10%
Solar Energy Reflectance 31%
Solar Energy Absorbance 59%
Shading Coefficient 0.31
Emmisivity 0.66
U Factor 1.01
Ultraviolet Light Rejected 99%
Glare Reduction 89%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

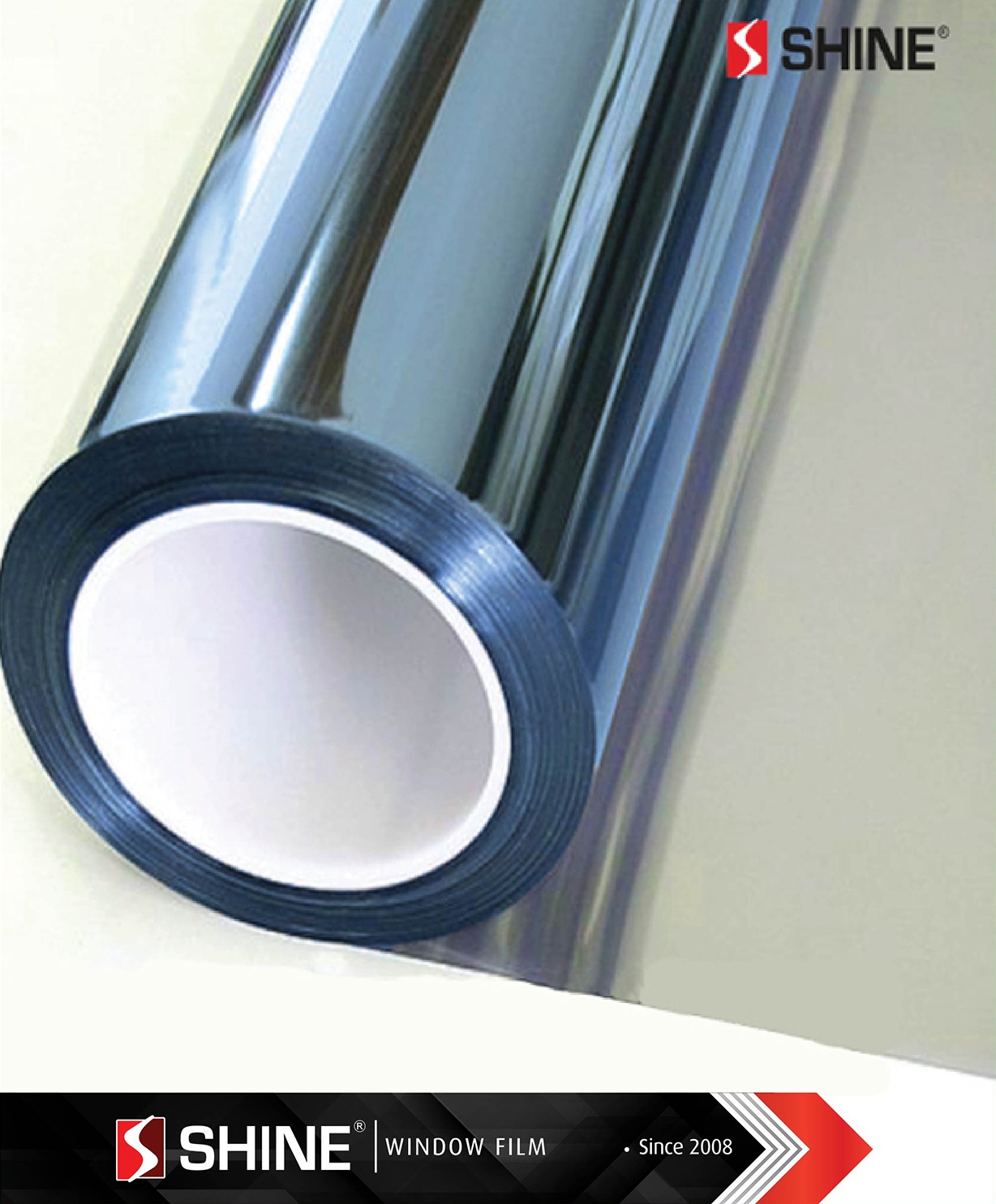

Product Code
R BLUE 15
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Blue (out) / Silver (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 18%
Visible Light Reflectance 31%
Solar Energy Transmittance 11%
Solar Energy Reflectance 37%
Solar Energy Absorbance 52%
Shading Coefficient 0.29
Emmisivity 0.69
U Factor 1.01
Ultraviolet Light Rejected 99%
Glare Reduction 86%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

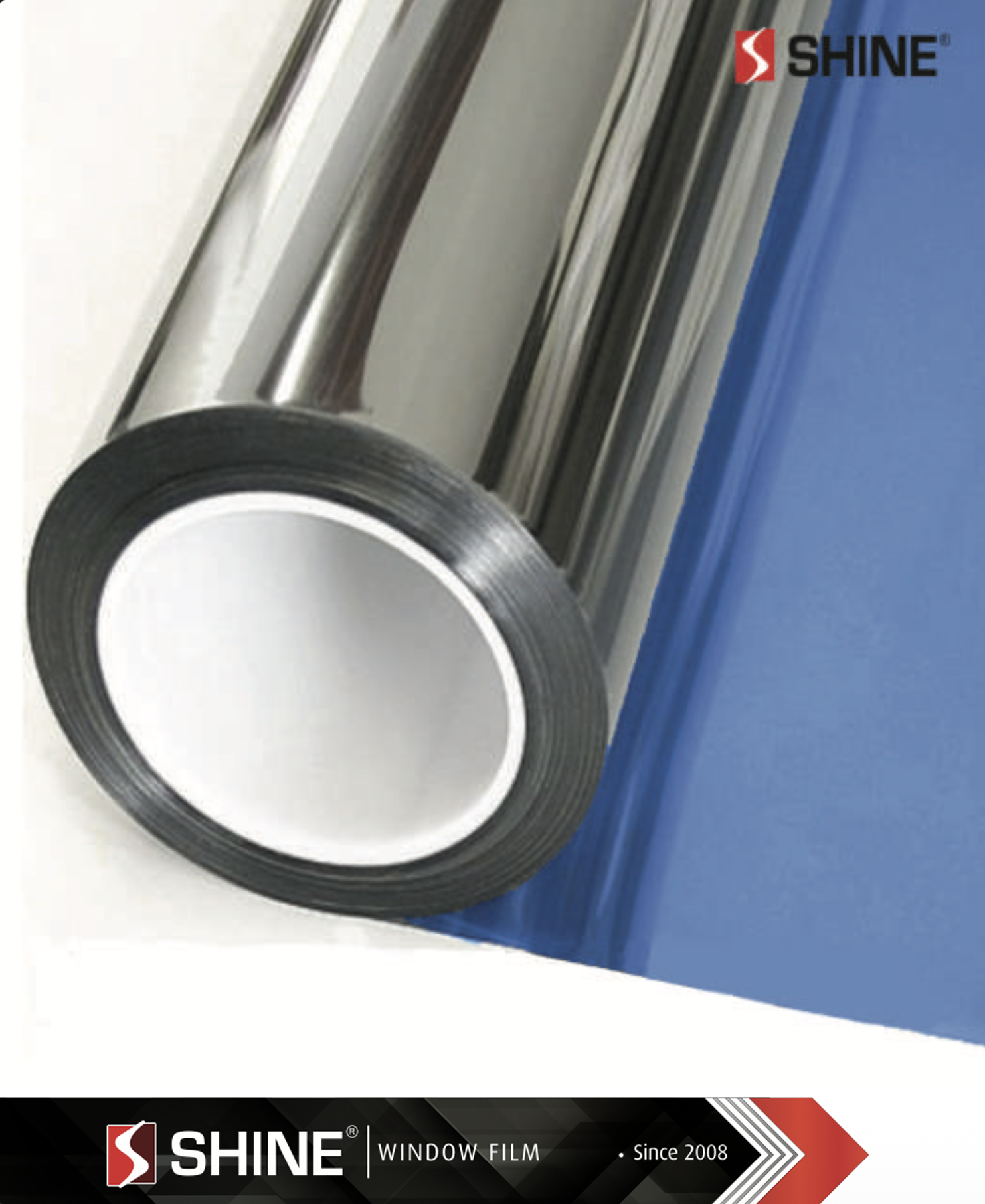

Product Code
R BLUE 15_i
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Silver (out) / Blue (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 18%
Visible Light Reflectance 55%
Solar Energy Transmittance 11%
Solar Energy Reflectance 37%
Solar Energy Absorbance 52%
Shading Coefficient 0.29
Emmisivity 0.69
U Factor 1.01
Ultraviolet Light Rejected 99%
Glare Reduction 86%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

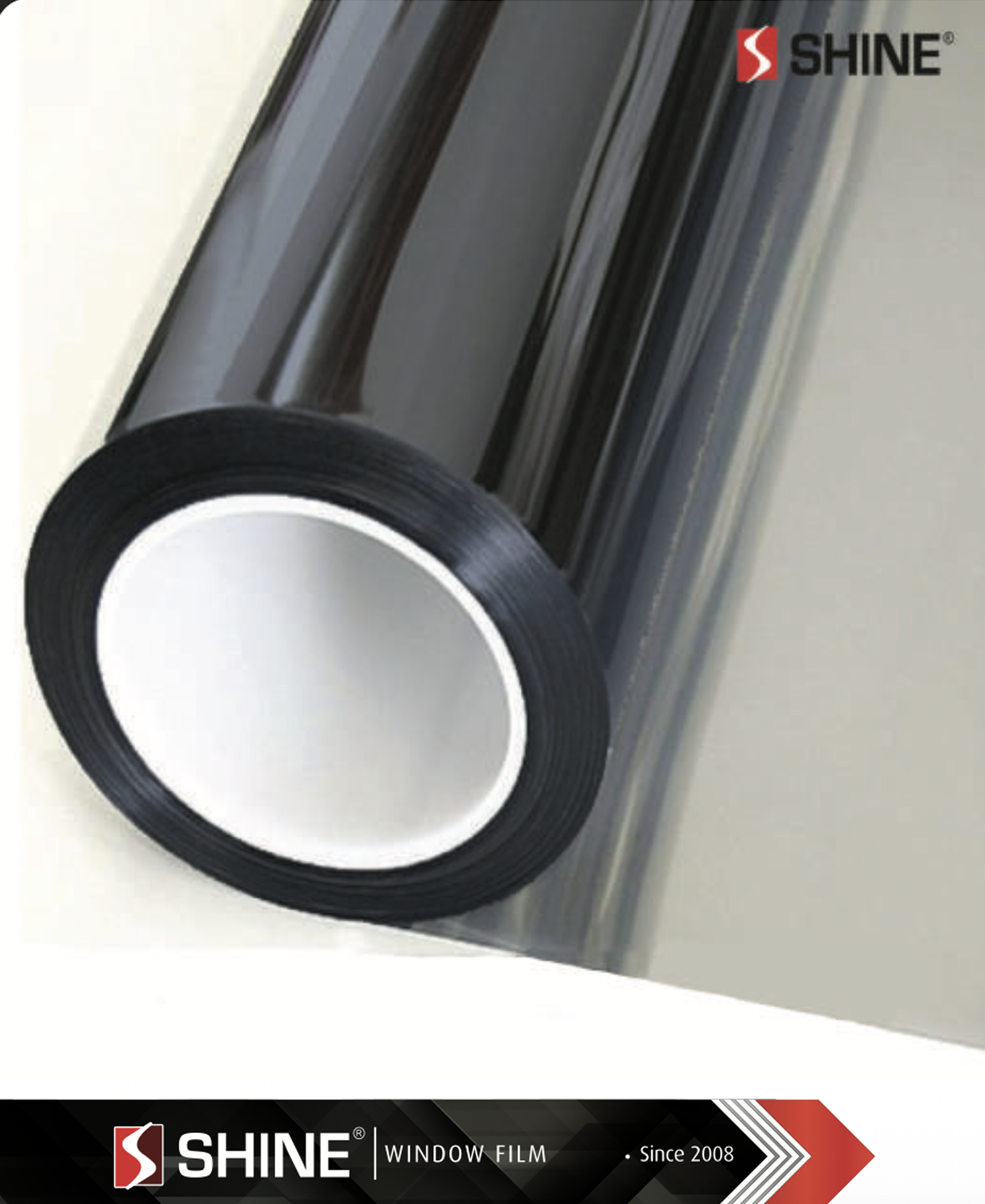

Product Code
R GREY 10
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Grey (out) / Silver (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 08%
Visible Light Reflectance 13%
Solar Energy Transmittance 09%
Solar Energy Reflectance 27%
Solar Energy Absorbance 64%
Shading Coefficient 0.31
Emmisivity 0.68
U Factor 1.03
Ultraviolet Light Rejected 99%
Glare Reduction 92%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

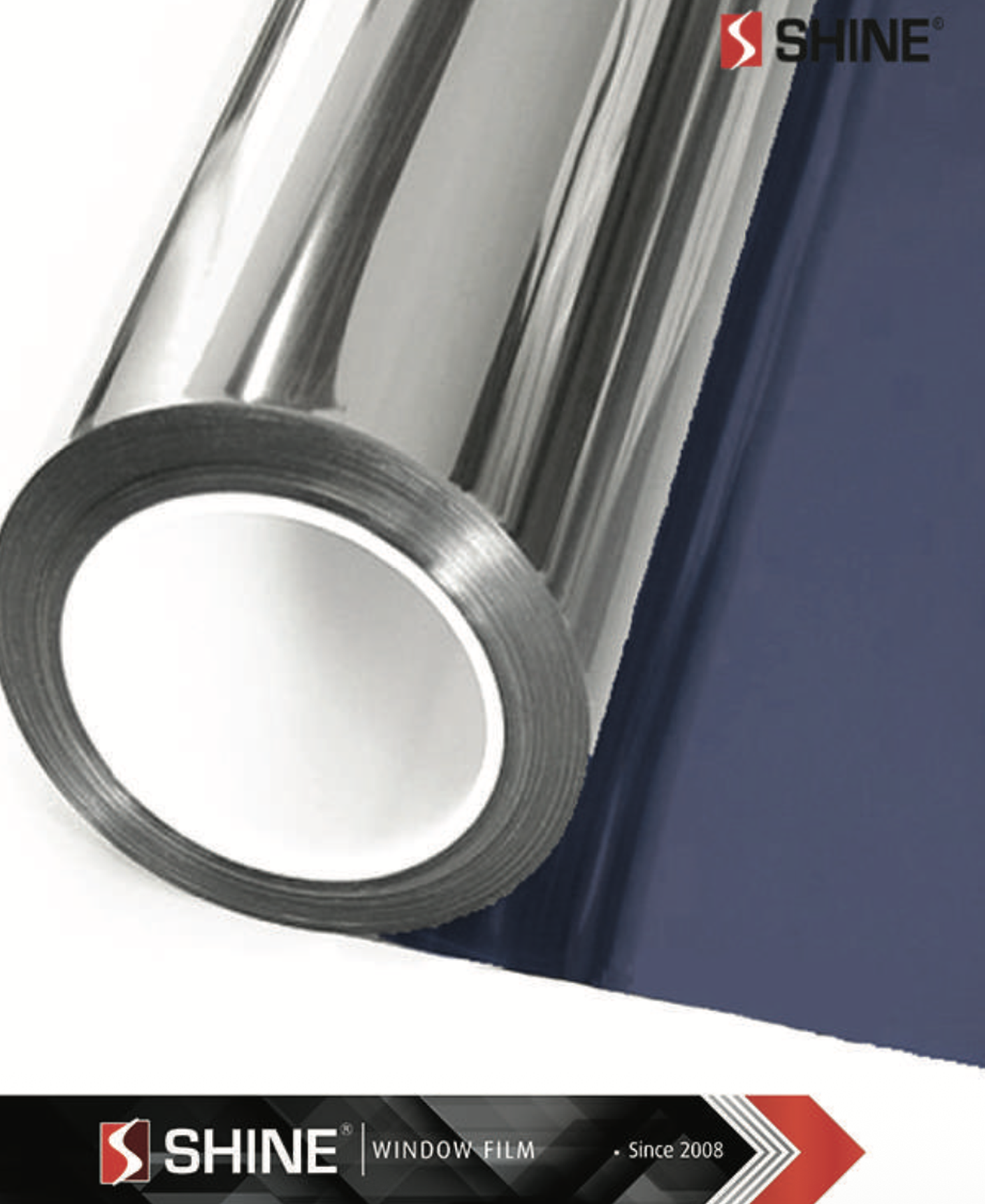

Product Code
R GREY 10_i
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Silver (out) / Grey (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 08%
Visible Light Reflectance 55%
Solar Energy Transmittance 09%
Solar Energy Reflectance 27%
Solar Energy Absorbance 64%
Shading Coefficient 0.31
Emmisivity 0.68
U Factor 1.03
Ultraviolet Light Rejected 99%
Glare Reduction 92%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

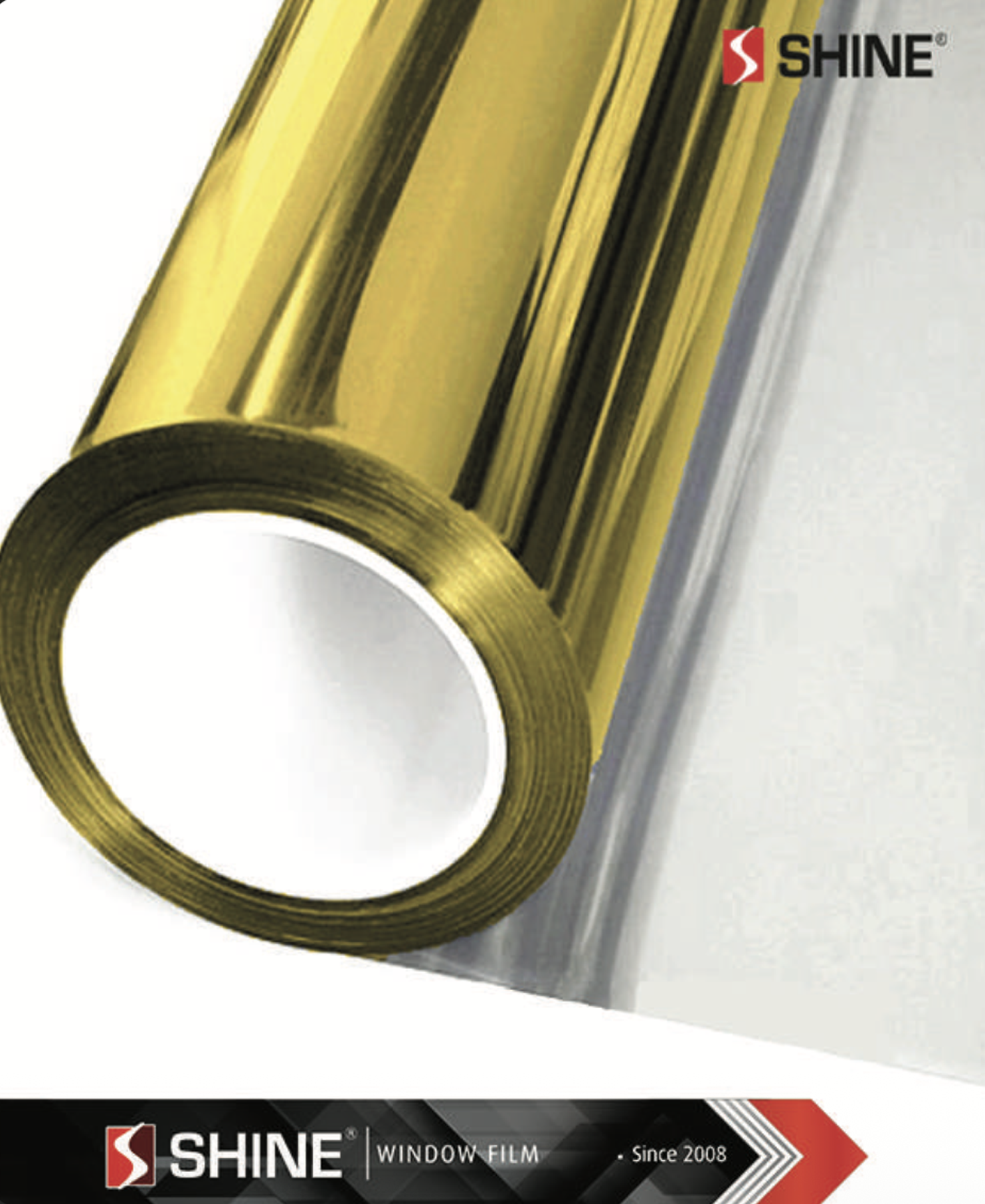

Product Code
R GOLD 15
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Gold (out) / Silver (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 15%
Visible Light Reflectance 46%
Solar Energy Transmittance 12%
Solar Energy Reflectance 44%
Solar Energy Absorbance 44%
Shading Coefficient 0.28
Emmisivity 0.69
U Factor 1.04
Ultraviolet Light Rejected 99%
Glare Reduction 84%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code
R GOLD 15_i
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Silver (out) / Gold (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 15%
Visible Light Reflectance 55%
Solar Energy Transmittance 12%
Solar Energy Reflectance 44%
Solar Energy Absorbance 44%
Shading Coefficient 0.28
Emmisivity 0.69
U Factor 1.04
Ultraviolet Light Rejected 99%
Glare Reduction 84%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code
R BRONZE 10
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Bronze (out) / Silver (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 10%
Visible Light Reflectance 21%
Solar Energy Transmittance 10%
Solar Energy Reflectance 31%
Solar Energy Absorbance 59%
Shading Coefficient 0.31
Emmisivity 0.66
U Factor 1.01
Ultraviolet Light Rejected 99%
Glare Reduction 89%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

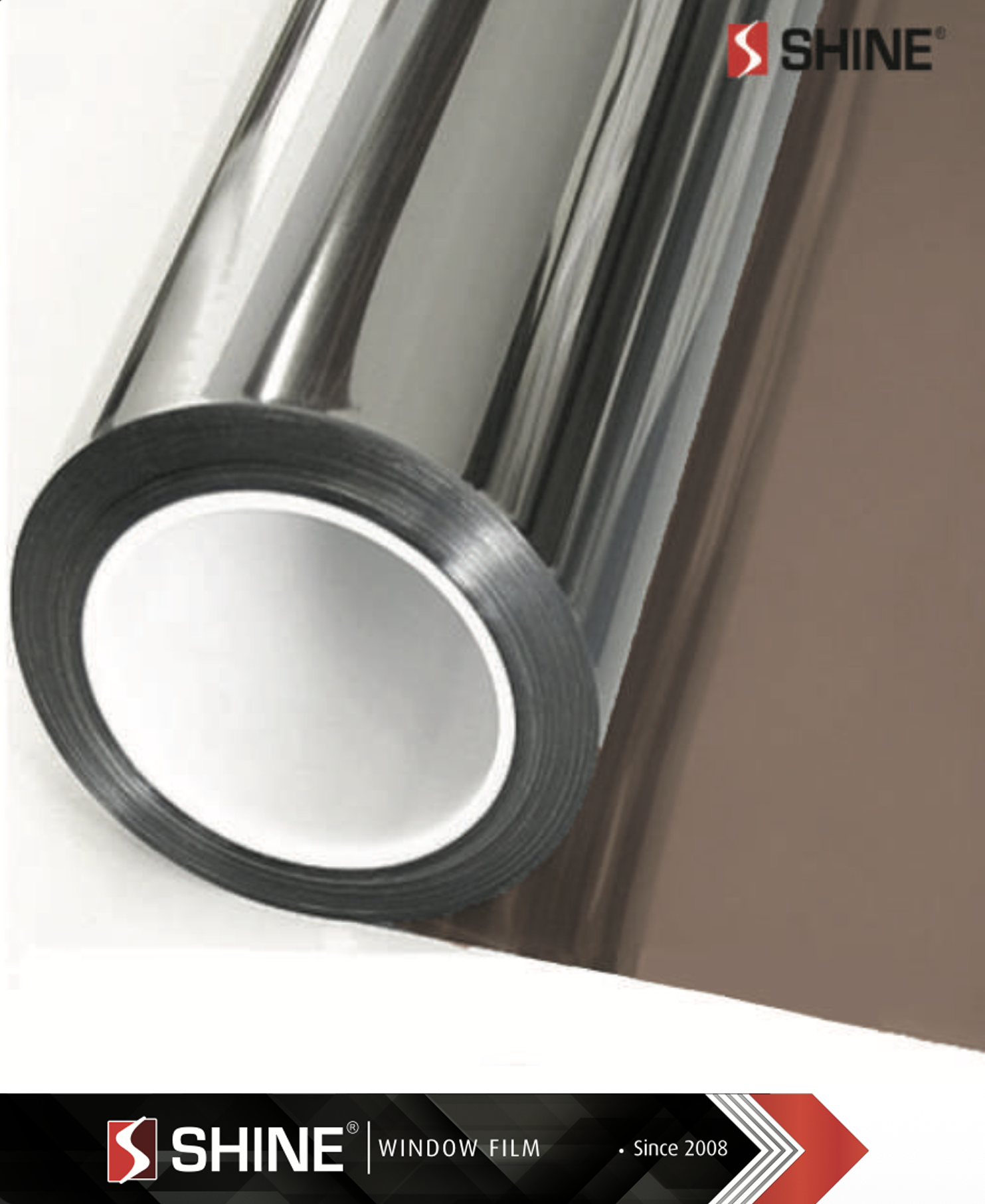

Product Code
R BRONZE 10_i
Product Specifications:
Category
Architectural
Series
Reflective
Construction:
Thickness
2 Mil
Metal
Metalized
Color
Silver (out) / Bronze (in)
Adhesive
Pressure Adhensive
Solar Performance:
Visible Light Transmittance 10%
Visible Light Reflectance 55%
Solar Energy Transmittance 10%
Solar Energy Reflectance 31%
Solar Energy Absorbance 59%
Shading Coefficient 0.31
Emmisivity 0.66
U Factor 1.01
Ultraviolet Light Rejected 99%
Glare Reduction 89%
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
