OUR PRODUCTS

ARCHITECTURAL FILMS

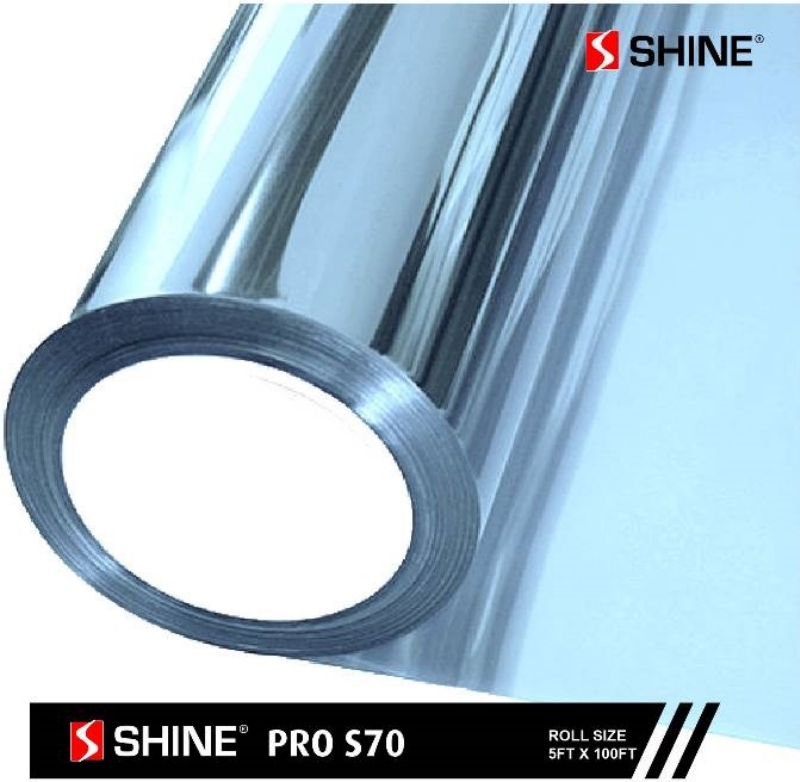

Product Code
PRO S70
Product Specifications:
Category
Architectural/Automobile
Series
Pro S
Construction:
Thickness
2ply / 2 Mil
Technology
Sputter 6 Layer
Color
Light Grey
Adhesive
Pressure Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 70%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 97%
Infrared Rejection (940nm) 91%
Full Infrared Rejection 94%
Solar Heat Gain Coefficient 0.42
Total Soalr Energy Rejected 58%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

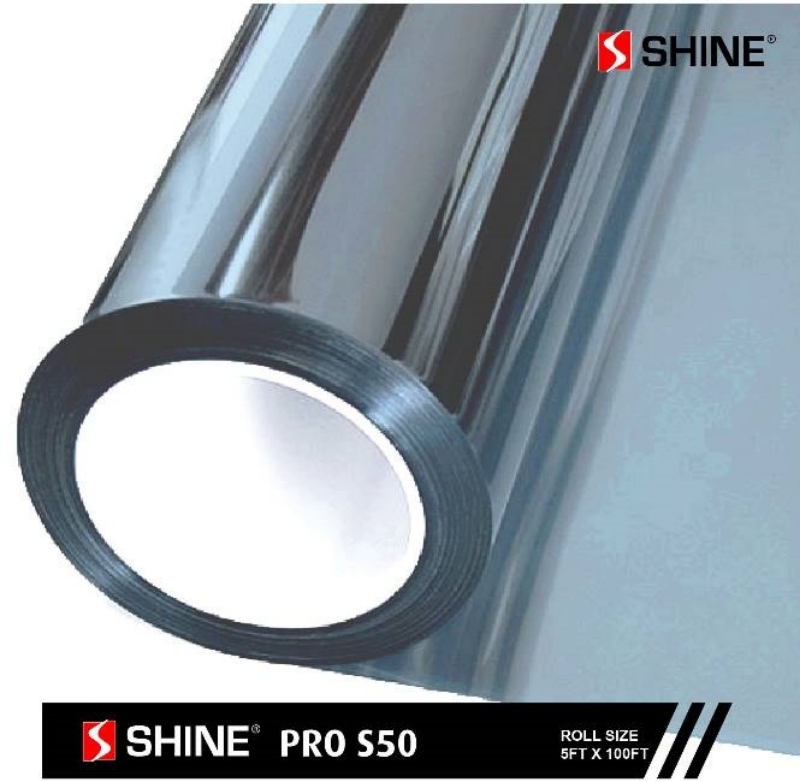

Product Code
PRO S50
Product Specifications:
Category
Architectural/Automobile
Series
Pro S
Construction:
Thickness
2plt / 2 Mil
Technology
Sputter 6 Layer
Color
Light Grey
Adhesive
Pressure Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 50%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 99%
Infrared Rejection (940nm) 95%
Full Infrared Rejection 97%
Solar Heat Gain Coefficient 0.25
Total Solar Energy Rejected 75%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

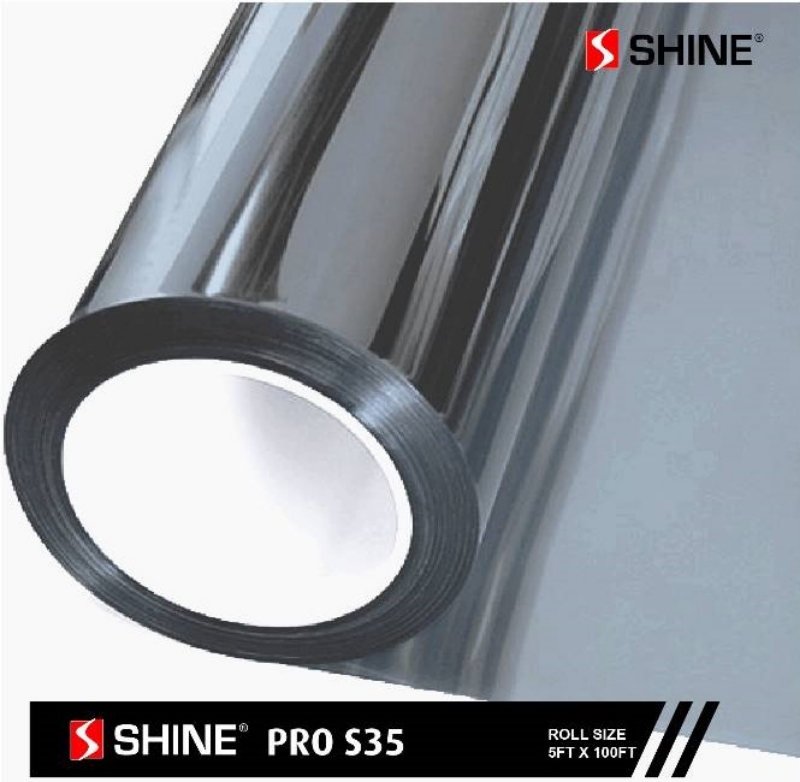

Product Code
PRO S35
Product Specifications:
Category
Architectural/Automobile
Series
Pro S
Construction:
Thickness
2ply / 2 Mil
Technology
Sputter 6 layer
Color
Medium Grey
Adhesive
Pressure Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 35%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 99%
Infrared Rejection (940nm) 95%
Full Infrared Rejection 97%
Solar Heat Gain Coefficient 0.20
Total Solar Energy Rejected 80%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
Product Code
PRO S20
Product Specifications:
Category
Architectural/Automobile
Series
Pro S
Construction:
Thickness
2ply / 2 Mil
Technology
Sputter 6 Layer
Color
Medium Grey
Adhesive
Pressure Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 20%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 99%
Infrared Rejection (940nm) 95%
FUll Infrared Rejection 97%
Solar Heat Gain Coefficient 0.13
Total Solar Energy Rejected 87%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.

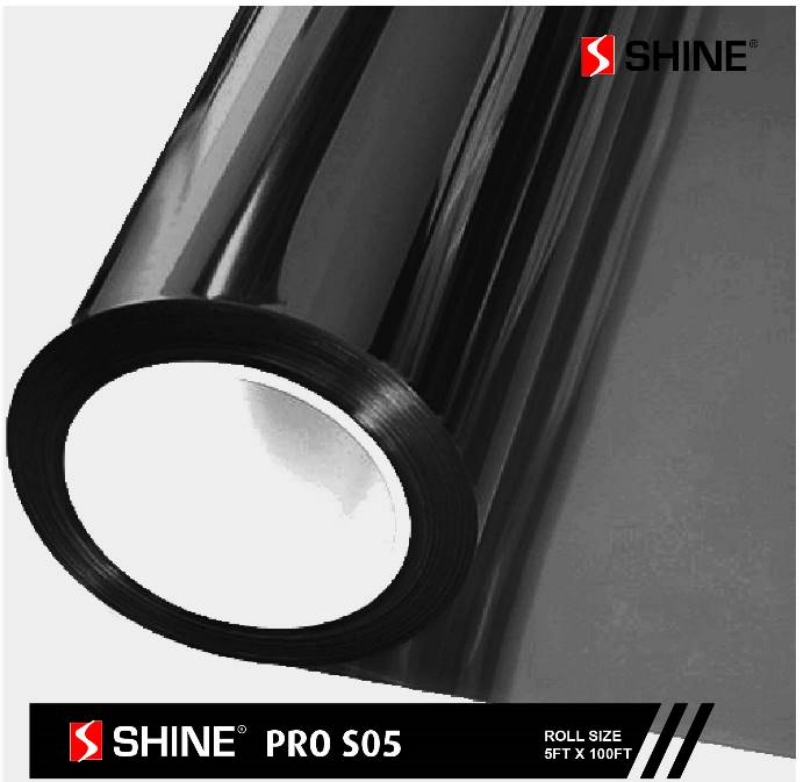

Product Code
PRO S05
Product Specifications:
Category
Architectural/Automobile
Series
Pro S
Construction:
Thickness
2ply / 2 Mil
Technology
Sputter 6 Layer
Color
Dark Grey
Adhesive
Pressure Adhesive
Warranty
5 Years
Solar Performance:
Visible Light Transmittance 05%
Ultra Violet Rejection 99%
Infrared Rejection (1400nm) 99%
Infrared Rejection (940nm) 95%
Full Infrared Rejection 97%
Solar Heat Gain Coefficient 0.07
Total Solar Energy Rejected 93%
Published values are generated from film tested on 1/8"(3mm) thick clear glass. These values are representative of typical production runs, subjects to normal manufacturing tolerances within industry standards.
